Pointer Plus Excel II


Excl. Tax: €170.00
Incl. Tax: €209.10
In stock
SKU 155-262

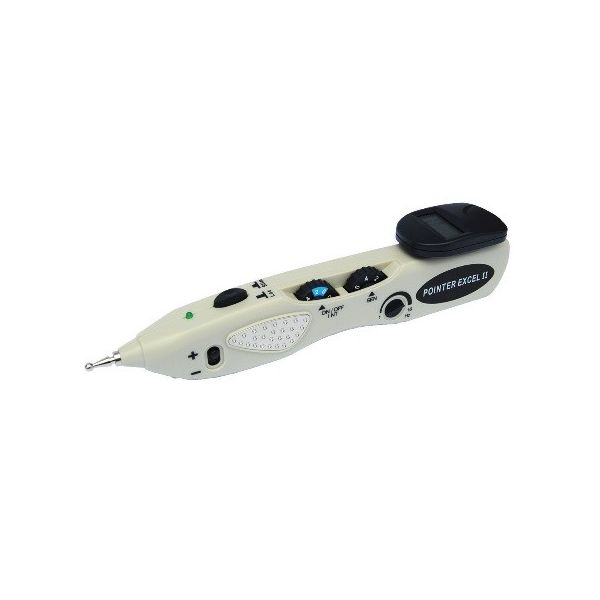

The Pointer Plus Excel II is a new, user friendly, handheld device with digital display for locating acupuncture or trigger points. It incorporates an effective push button stimulation feature for immediate treatment of the point after its detection. The digital display helps the user to locate the most accurate points, as the number increases with the lowering of the electric resistance of the skin. When a maximum number is reached, an acupuncture point is detected.

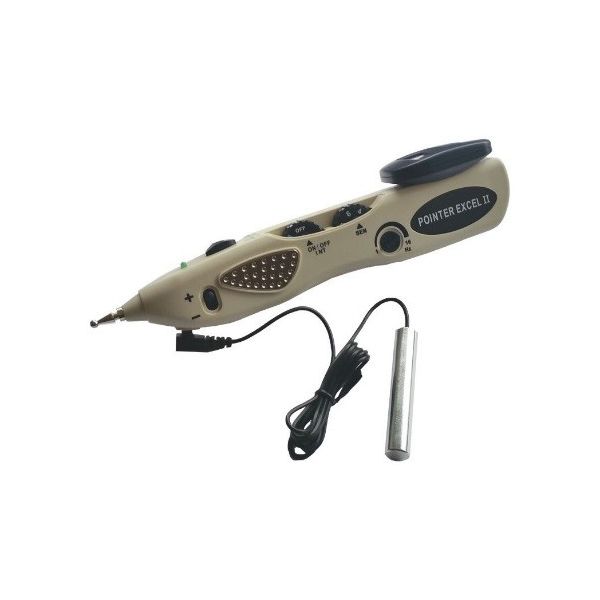

The Pointer Excel II features two grounding plates on the unit (allowing use with either left or right hands) as well as a hand probe with grounding pole and attached wire.

Details

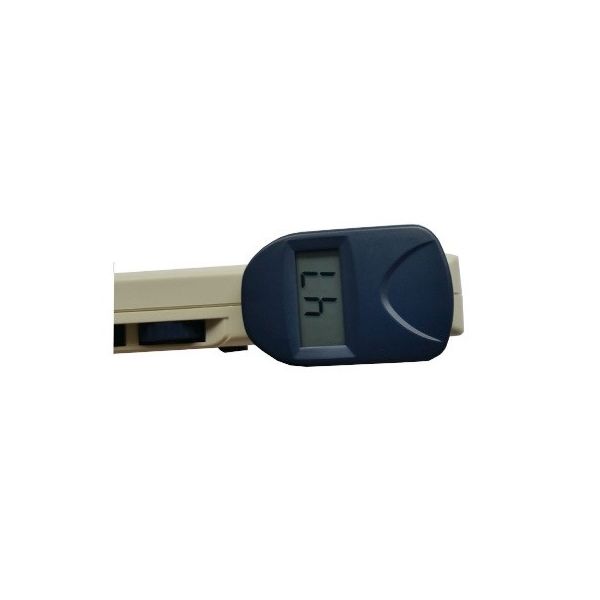

The Pointer Plus Excel is the latest and most advanced user friendly hand held point locator and stimulator. The Excel features a built-in, 0.35" x 1.0" LCD digital display meter for location of acupuncture and trigger points.

Modern, hand held, 6.5" long Pointer Plus Excel unit offers sensitive acu-point or trigger point location and stimulation. Location and stimulation are independently adjusted with two separate control dials.

The Pointer Plus Excel device also includes more advanced features; the frequency is adjustable (1 to 16 Hz) and is also displayed on the LCD digital display when the stimulation button is pressed. Furthermore, a polarity reversal switch offers the options of tonification (-) or sedation (+) treatment.

The figure on the display increases with the lowering of the electric resistance of the skin, and when a maximum figure is reached, an acupuncture point is detected. A flashing light and sound indicate when point detection is made. The spring activated detection allows a uniform pressure when searching.

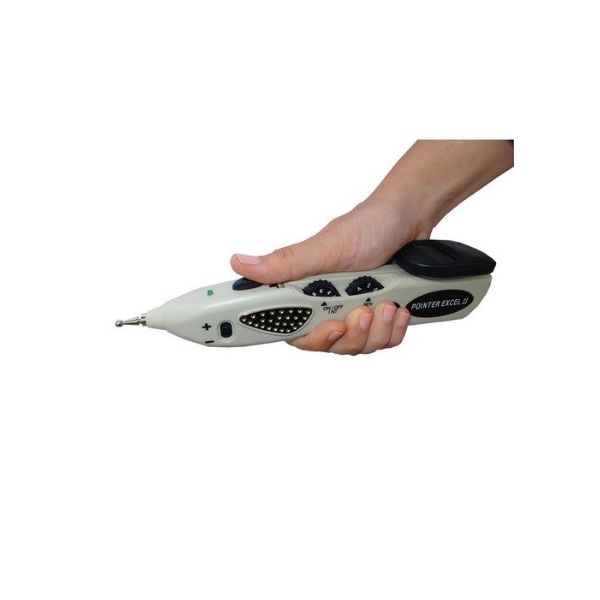

The grounding circuit is made by holding the metal plate on the side of the unit or with the hand grounding pole.

What's Included?

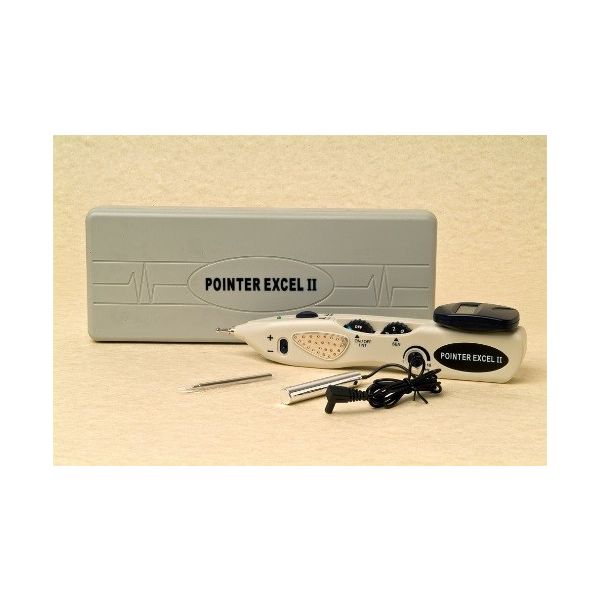

Pointer Plus Excel features two grounding plates on the unit (allowing use with either left or right hands) as well as a hand probe with grounding pole and attached wire. Two probe tips are included with the unit: 2 mm (0.08") suitable for auricular point detection and body 4 mm (0.16"). Other standard accessories include carrying case and instructions.

Specification:

Output channels: one
Frequency: 1 to 16 Hz
Frequency meter: LCD, 0.35"x1.0"
Volts & current: Normal dial 0 to 22 milliamps
Volts & current: Blue zone 0 to 2 microamps
Polarity reversal: +/- by switch
Pulse width: 220 microseconds
Pulse shape: asymmetric biphasic square wave
Pulse modes: continuous
Measures: 6.5" x 1.3" x 0.9"
