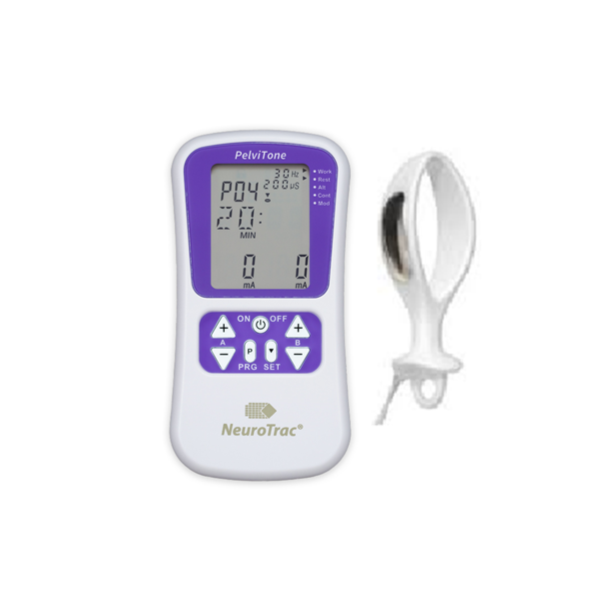

NEUROTRAC PELVITONE UNIT
Digital Dual Channel Stimulator (NMES)used to treat urinary incontinence by sending a mild electric current to nerves in the lower back, tibialis nerve or in most of the cases, to the pelvic muscles using a probe.
Suitable for urinary or rectal incontinence.
9 Built in programmes for ease of use.
3 Customisable constant mode programmes.
Ability to lock the unit and records total time in use and average current.
Dual channel PelviTone device has all the features of Continence device, plus:
Advanced multi-phase programmes where treatment is split into time phases with different stimulation parameters;
Stronger symmetrical stimulation with the reduced Pulse Width : 50 – 330 μS.
Three Custom programmes plus 11 Preset Continence programmes.
Lock mode function to measure the home compliance (mA and time used)
NeuroTrac™ VeriProbe – The Vaginal probe for EMG and Electrostimulation.
Click on the image to download detail specification
Dual channel: individually isolated circuits.
Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
Waveform: Symmetrical, rectangular bi-phasic with zero DC current.
Selectable pulse width: 50 μS – 330 μS [2% accuracy].
Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
Time duration of the treatment selectable: 1 minute to 90 minutes.
Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
Ramp up time: 0.1 – 9.9 seconds.
If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
Physical dimensions: 134 x 69 x 29.7 mm.
Weight: 0.18 KG with battery.
Environmental Conditions for use:
+5 to +40 degrees Centigrade. 0-90% Humidity.
Environmental conditions for storage & transport:
-25 to +70 degrees Centigrade. 0-90% Humidity.
